Lesson 5

Operational amplifiers

Learn how to describe an ideal operational amplifier (Op Amp) using the o element. And practice what you learn in a variety of solved op-amp problems, both easy and hard.

Last updated 2023-07-08

In this lesson, you will learn how to describe an ideal operational amplifier — also called an Op Amp — using the o element. And you will practise what you learn in a variety of solved op-amp problems, both easy and hard.

5.1How to describe an ideal operational amplifier

There are many types of operational amplifiers. Symbulator can simulate the ideal, linear type.

What answers do you get

For each ideal op amp in a circuit, Symbulator will store the following answers:

  • The current through the output node, flowing from the output node outwards. For an op amp called o, that is io.
  • The power consumed by the visible part of the op amp. For an op amp called o2, po2; the power delivered is the negative of that.
  • And, as with every element's nodes, the voltage of each of its nodes with reference to ground. For node o, vo.

Livin' on the edge

Since I was born to be bad, I like to play with node names to get the answers as close to the book as possible. So do not be surprised if I call one op amp "o" and name its output node "o" as well. That way I can ask for vo and io and get the output voltage and current. But realise this: vo asks for the voltage in node o, while in io the o stands for the element o.

In Symbulator 9 the collision is impossible: Results lists node voltages and element quantities in separate sections, each labelled by its own node or element, so a node called o and an op amp called o never contend for the same name.

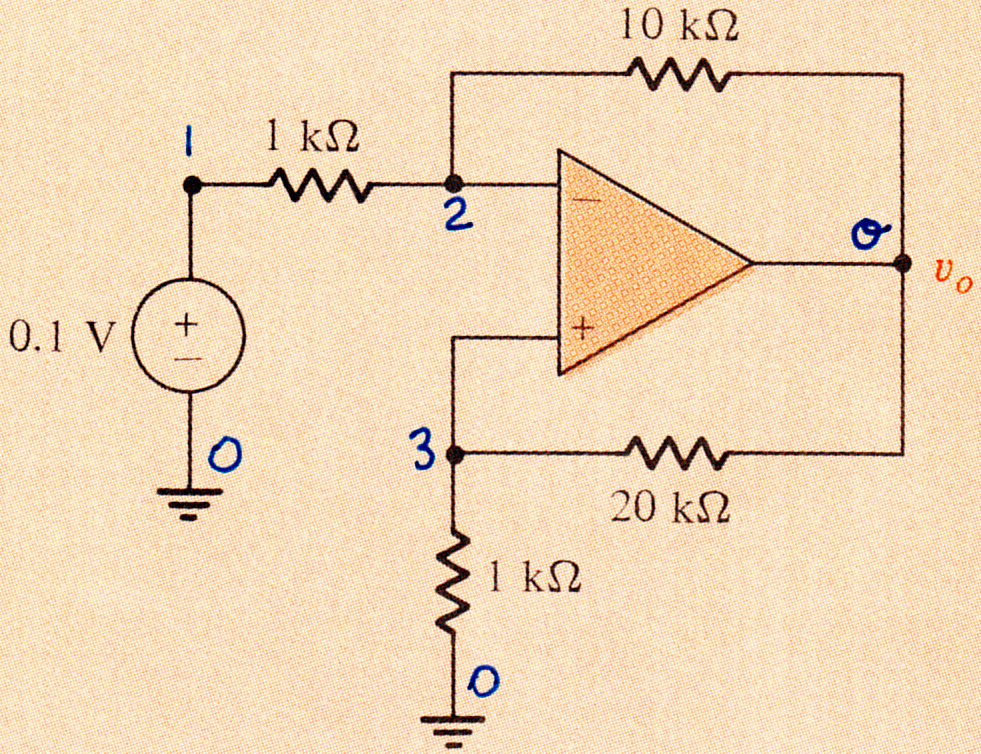

Bo2's Drill Exercise 3.2

For the op-amp circuit shown, find vo and the power absorbed by the op amp.

Bo2's Drill Exercise 3.2

Solution

My solution:

Circuit Description
e,1,0,.1
r12,1,2,1'k
r2o,2,o,10'k
r30,3,0,1'k
r3o,3,o,20'k
o,3,2,o

We look in the results and see vo and po:

  • vo = -2.1 V
  • po = -0.00063 W

Which are correct. The voltage in node o is –2.1 V, and the op amp is absorbing –.63 mW, which is to say it is delivering .63 mW of power to the circuit.

5.2Instructive Op Amp examples

Solved Op Amp problems

Bo2's Drill Exercise 3.11 (Thévenin)

Find the Thévenin equivalent.

Circuit Description
e,1,0,vs
r1,2,0,r1
r2,2,3,r2
o,1,2,3

Set Type of analysis to Find equivalent and Type of equivalent to Thévenin / Norton. Two node boxes appear: put 3 in the first and 0 in the second — the pair of terminals you are looking into.

This is the one that catches people out, and Symbulator says so plainly:

  • vth = \(\frac{vs \left(r_{1} + r_{2}\right)}{r_{1}}\)
  • ino =
  • req = 0
  • pmax =

with a note beneath the answers explaining that the short-circuit current is unbounded, so the equivalent is a voltage source with no impedance in series with it.

None of that is a failure to solve, and none of it is guesswork. An ideal op amp holds its output voltage whatever current is drawn from it, so asking what flows through a short across that output has no answer as an equation — the two rounds Symbulator runs to build a Thévenin equivalent leave the second one unsolvable. What it does instead is put a resistance across the terminals rather than a short, and let that resistance fall to zero, which is what a short is. The current grows without bound, and an unbounded current through a short is precisely a source with nothing in the way of it: REQ = 0Ω.

So VTH is correct, as can be seen by comparing it to the book's answer — and the Thévenin resistance is not merely asserted here, it is the answer Symbulator gives.

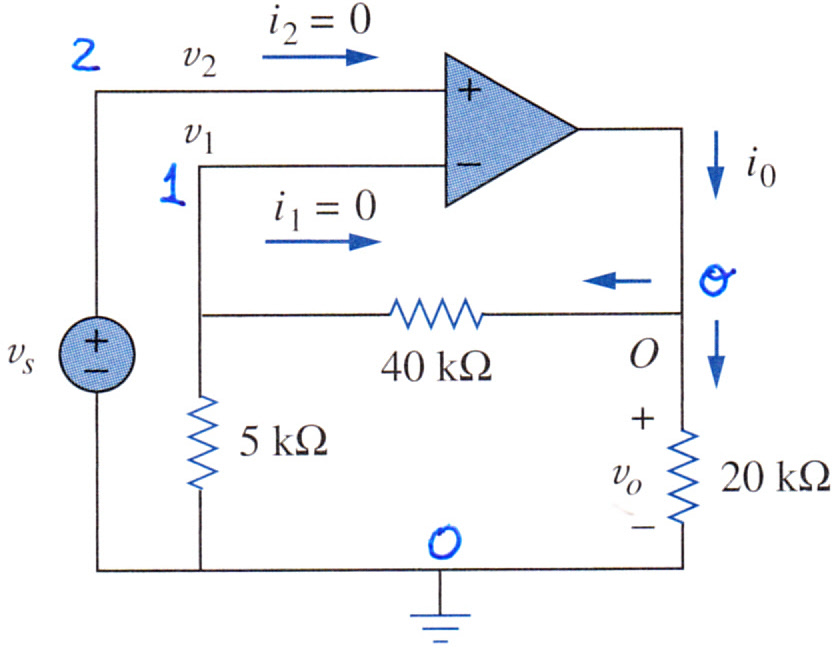

AS2's Example 5.2

Find vo and io.

Circuit Description
e,2,0,1.
r5,1,0,5'k
r4,1,o,40'k
r2,o,0,20'k
o,2,1,o

The answers you want are vo and io, in Results.

The answer, {9.,.00065}, is correct: vo is 9V and io is 0.65mA

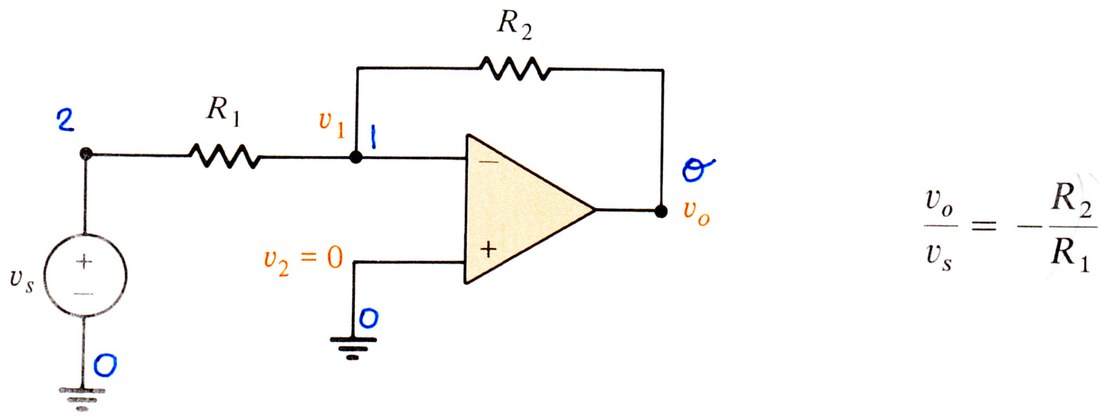

Bo2's Figure 3.3 (Inverting)

Find the gain of the overall circuit, vo/vS.

Circuit Description
e,2,0,vs
r1,2,1,r1
r2,1,o,r2
o,1,0,o

Ask Evaluate for:

Evaluate
vo/vs

We get -r2/r1, which is correct, as can be seen in the book's answer above.

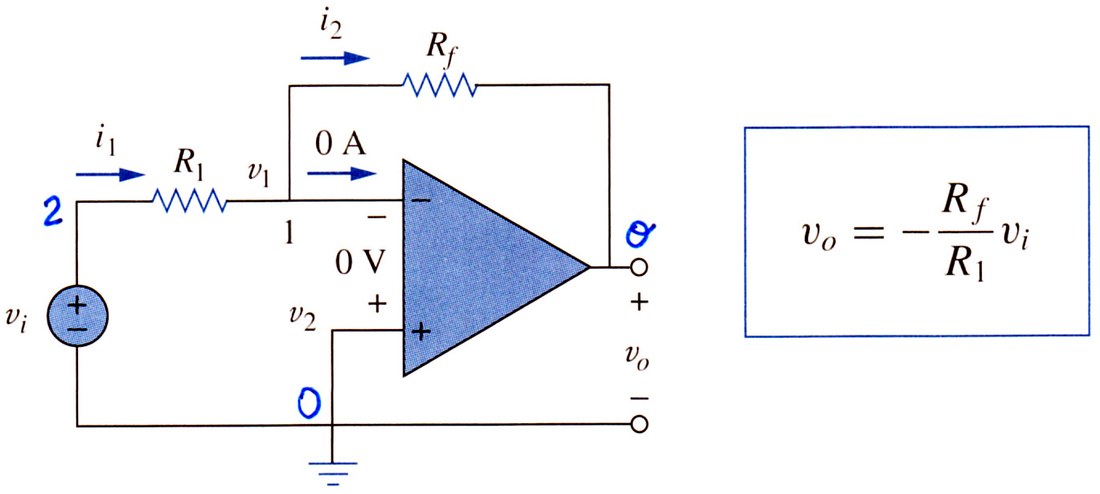

AS2's Figure 5.10 (Inverting)

Find vo.

Circuit Description
e,2,0,vi
r1,2,1,r1
rf,1,o,rf
o,0,1,o

The answer you want is vo, in Results.

This problem is almost identical to the one above. The answer we get is correct:

-(rf/r1)vi

AS2's Example 5.3 (Inverting)

If vi is 0.5V, calculate the output voltage vo and the current in the 10 kΩ resistor.

Circuit Description
e,2,0,.5
r1,2,1,10'k
rf,1,o,25'k
o,0,1,o

The answers you want are vo and ir1, in Results.

The answer, {-1.25, 5e-5}, is correct.

TR5's Exercise 4-11 (Inverting)

Find vO when vS is 2V, -4V and 6V. Notice the output of the op amp is limited to ±15V.

This may be the only non-linear problem you will see in this book, because I solved it before I realized it included the ±15V constraint. But anyway, here it goes.

Circuit Description
e,1,0,vs
r1,1,2,10'k
r2,2,o,33'k
o,0,2,o

The calculator's | says "given"; version 9 says the same thing in the Evaluate card's own Conditions box. Put the answer you want in the first and the value you are giving it in the second:

Evaluate
vo
Conditions
vs = 2

Then run it again with vs = -4 and once more with vs = 6.

The answer, {-6.6,13.2,-19.8}, is correct within the linear realm, but since the output is constrained to no more than 15V or less than -15V, the answer is vO=-15V for vS = 6V.

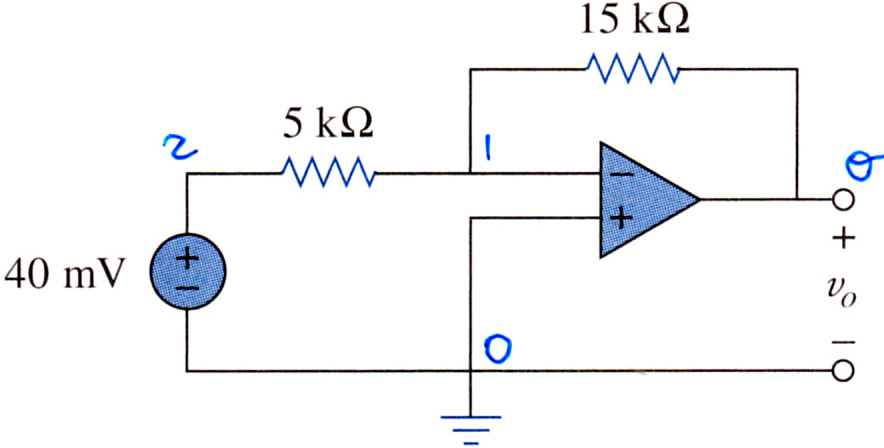

AS2's Practice Problem 5.3 (Inverting)

Find the output voltage of the op amp (i.e. vo) and calculate the current through the feedback resistor (i.e. the 15 kΩ resistor).

My answer: Notice we used the m for milli in the value of the voltage source.

Circuit Description
e,2,0,40'm
r1,2,1,5'k
rf,1,o,15'k
o,0,1,o

The answer, {-.12, 8e-6}, is correct.

AS2's Example 5.4 (Inverting)

Determine vo.

Circuit Description
e6,1,0,6
r1,1,a,20'k
e2,b,0,2
rf,a,o,40'k
o,a,b,o

The answer you want is vo, in Results.

The answer, -6, is correct.

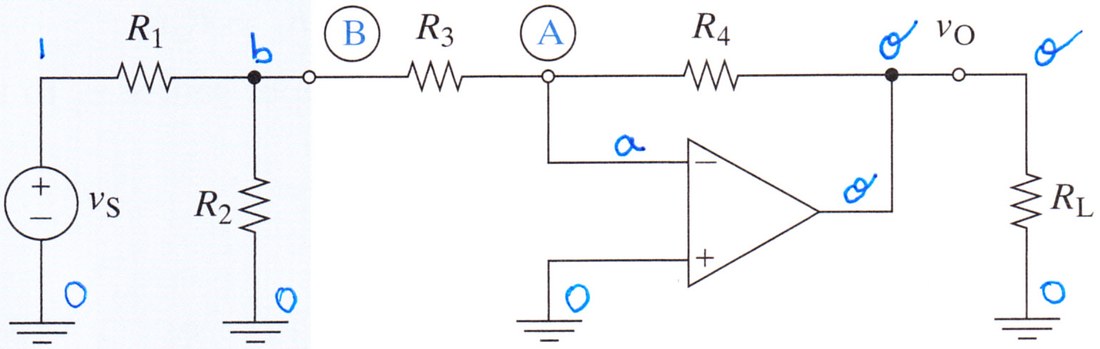

TR5's Example 4-14 (Inverting)

Find the input-output relationship of the circuit.

The 'formal' way to symbulate this circuit would be as described below.

Circuit Description
e,1,0,vs
r1,1,b,r1
r2,b,0,r2
r3,b,a,r3
r4,a,o,r4
o,0,a,o
rl,o,0,rl

However, since we are only interested in the ratio of the input to the output, a smarter way to symbulate it is this:

Circuit Description
e,1,0,1
r1,1,b,r1
r2,b,0,r2
r3,b,a,r3
r4,a,o,r4
o,0,a,o
rl,o,0,1

When we evaluate vo/v1, both approaches get the same answer:

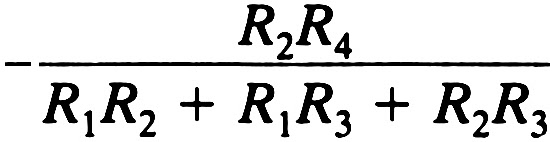

\[-\dfrac{r2\,r4}{r1\,r2 + r1\,r3 + r2\,r3}\]

which is correct, as can be seen by comparing it to the book's answer.

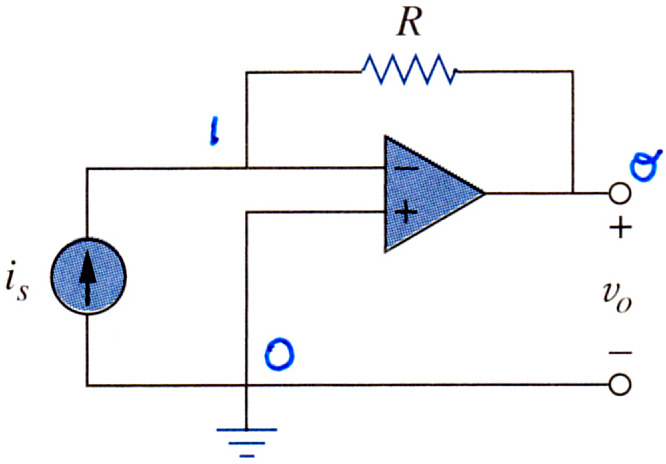

AS2's Practice Problem 5.4a (Transresistance)

This is a current-to-voltage converter, also called a transresistance amplifier. Find vo/iS.

Circuit Description
j,0,1,is1
r,1,o,r
o,0,1,o

Ask Evaluate for:

Evaluate
vo/is1

The answer, -r, is correct.

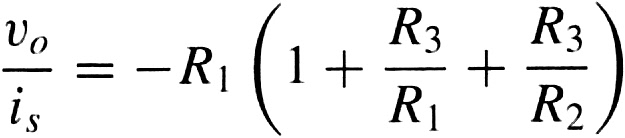

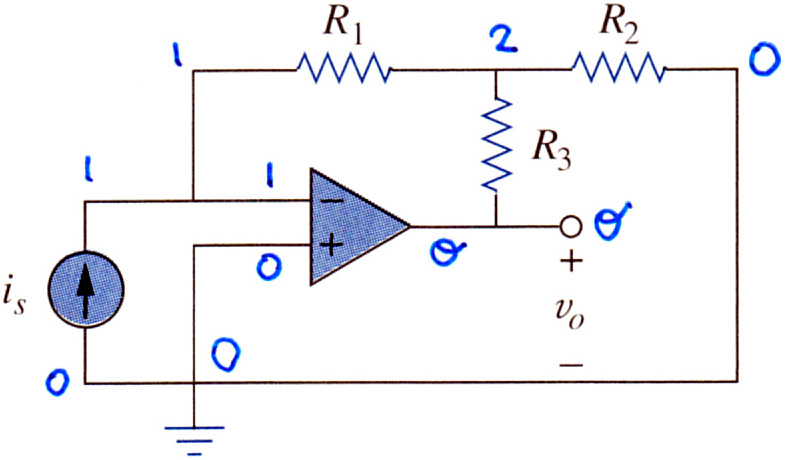

AS2's Practice Problem 5.4b (Transresistance)

This is another transresistance amplifier. Again, find vo/iS.

Circuit Description
j,0,1,is1
r1,1,2,r1
r2,2,0,r2
r3,2,o,r3
o,0,1,o

Ask Evaluate for vo/is1. It gives -r1 - r1*r3/r2 - r3, which is equivalent to the book's answer — the same expression, gathered differently.

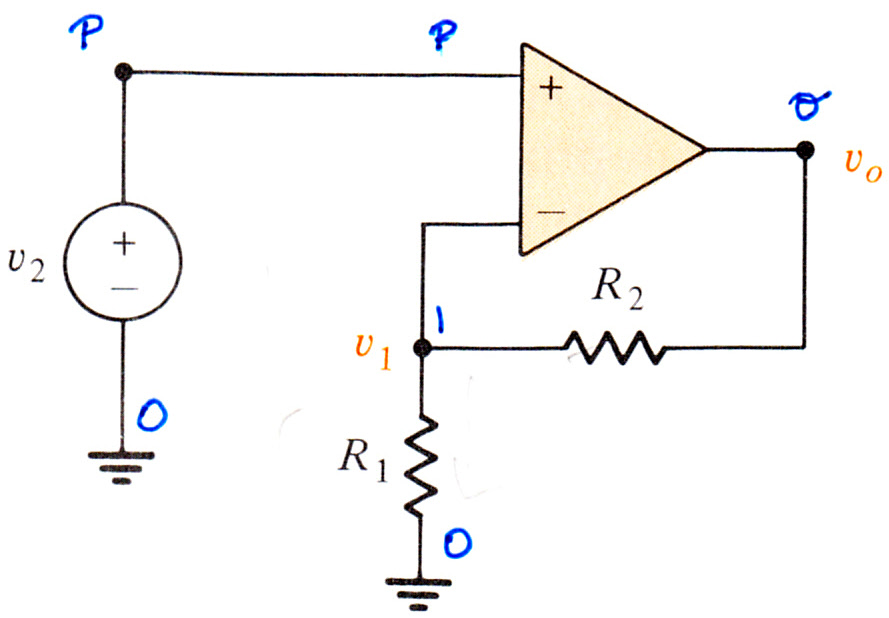

Bo2's Example 3.1 (Non-Inverting Amplifier)

Find vo/v1.

Circuit Description
e,p,0,v2
r1,1,0,r1
r2,1,o,r2
o,p,1,o

Ask Evaluate for:

Evaluate
vo/v1

We get 1+r2/r1, which is correct.

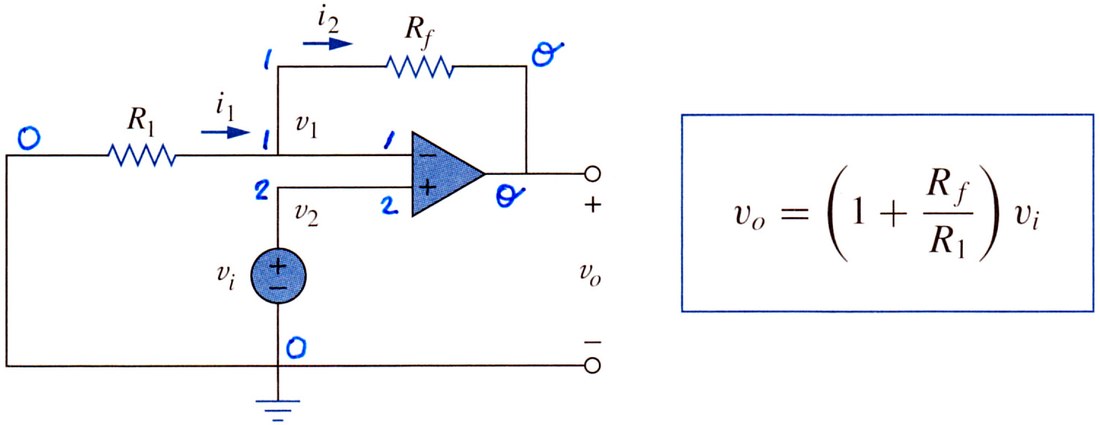

AS2's Figure 5.16 (Non-Inverting Amplifier)

Find vo.

Circuit Description
e,2,0,vi
r1,0,1,r1
rf,1,o,rf
o,2,1,o

The answer you want is vo, in Results.

We get the right answer (below), an expression equivalent to the book's answer.

\[\left(\dfrac{r1 + rf}{r1}\right) vi\]

TR5's Example 4-13 (Non-Inverting Amplifier)

Find Vo/Vs.

We can solve this problem in one simulation, as shown below.

Circuit Description
e,1,0,vs
r1,1,2,r1
r2,2,0,r2
o,2,3,o
r3,o,3,r3
r4,3,0,r4

Ask Evaluate for:

Evaluate
vo/vs

We get

\[\dfrac{r2\,(r3 + r4)}{(r1 + r2)\,r4}\]

which is correct, as can be seen by comparing it to the book's answer.

We can also solve it in stages, as shown below. First, simulate the left half.

Circuit Description
e,1,0,vs
r1,1,2,r1
r2,2,0,r2

Ask Evaluate for:

Evaluate
v2/vs

We get

\[\dfrac{r2}{r1 + r2}\]

which is correct for this part. Then, simulate the right half.

Circuit Description
e,2,0,1
o,2,3,o
r3,o,3,r3
r4,3,0,r4

Ask Evaluate for:

Evaluate
vo/v2

We get

\[\dfrac{r3 + r4}{r4}\]

which is correct for this part. The product of these two partial answers produces the same expression shown above after the big simulation, and is the right answer.

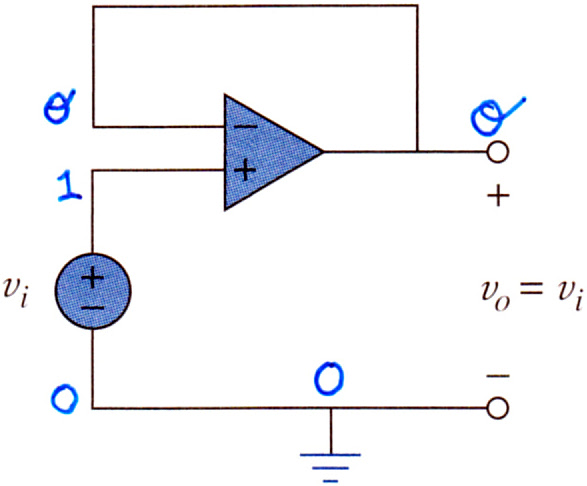

AS2's Figure 5.17 (Voltage Follower)

Find vo.

Circuit Description
e,1,0,vi
o,1,o,o

The answer you want is vo, in Results.

The answer, vi, is correct.

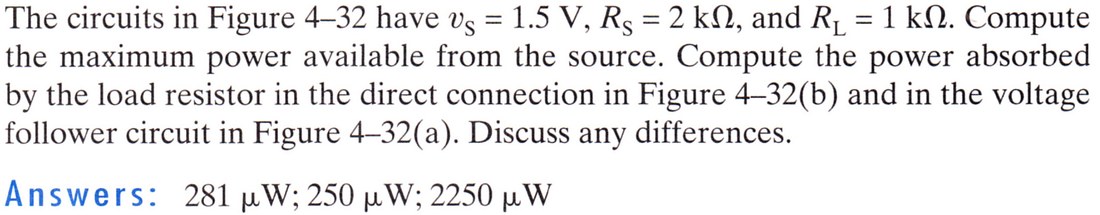

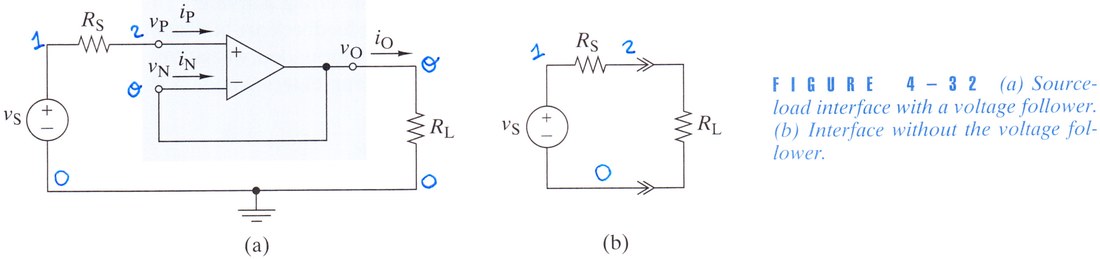

TR5's Figure 4-32 (Voltage Follower)

Alright, so first we simulate the (b) circuit, to find its maximum power and load power:

Circuit Description
e,1,0,1.5
rs,1,2,2'k

Set Type of analysis to Find equivalent and Type of equivalent to Thévenin / Norton. Two node boxes appear: put 2 in the first and 0 in the second — the pair of terminals you are looking into.

The answer you want is pmax, in Results.

The power in a 1 kΩ load is the expression Lesson 4 derives, with 1000 where R goes:

Evaluate
vth^2*1000/(req+1000)^2

The answers we get, {2.8125e-4,2.5e-4}, are correct. Now we simulate the (a) circuit.

Circuit Description
e,1,0,1.5
rs,1,2,2'k
o,2,o,o
rl,o,0,1'k

The answer you want is prl, in Results — the power consumed by the load resistor rl.

The answer, .00225, is correct. The apparent paradox — the load in (a) drawing more power than the source in (b) seems able to provide — evaporates once we remember that the ideal op amp in the schematic is only part of the truth: the real one has its own source of power, which makes up the difference.

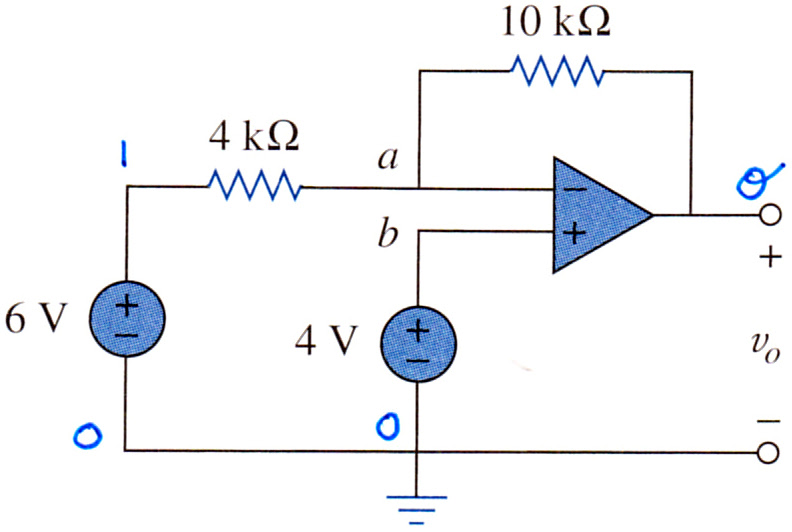

AS2's Example 5.5 (Inverting)

Find vo.

Circuit Description
e1,1,0,6
r4,1,a,4'k
r10,a,o,10'k
e4,b,0,4
o,b,a,o

The answer you want is vo, in Results.

The answer, -1, is correct.

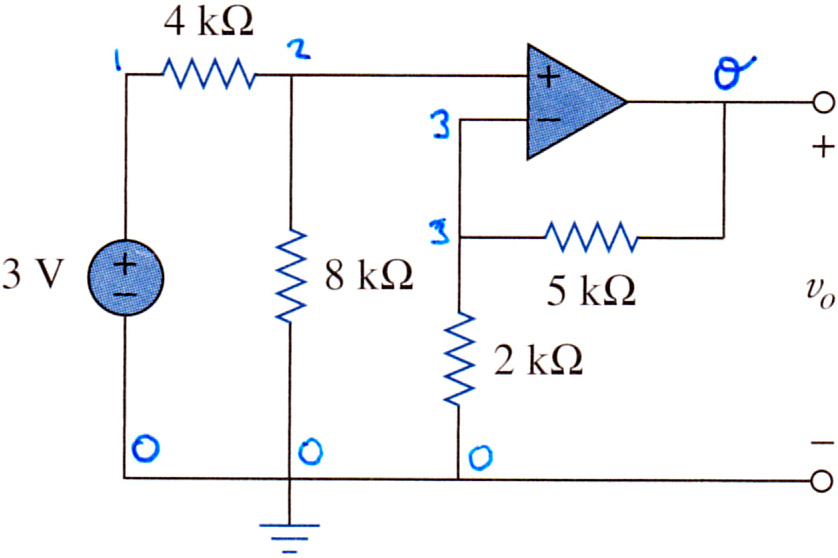

AS2's Practice Problem 5.5 (Non-Inverting)

Calculate vo.

Circuit Description
e,1,0,3
r4,1,2,4'k
r8,2,0,8'k
r2,3,0,2'k
r5,3,o,5'k
o,2,3,o

The answer for vo, 7, is correct.

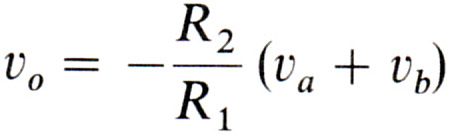

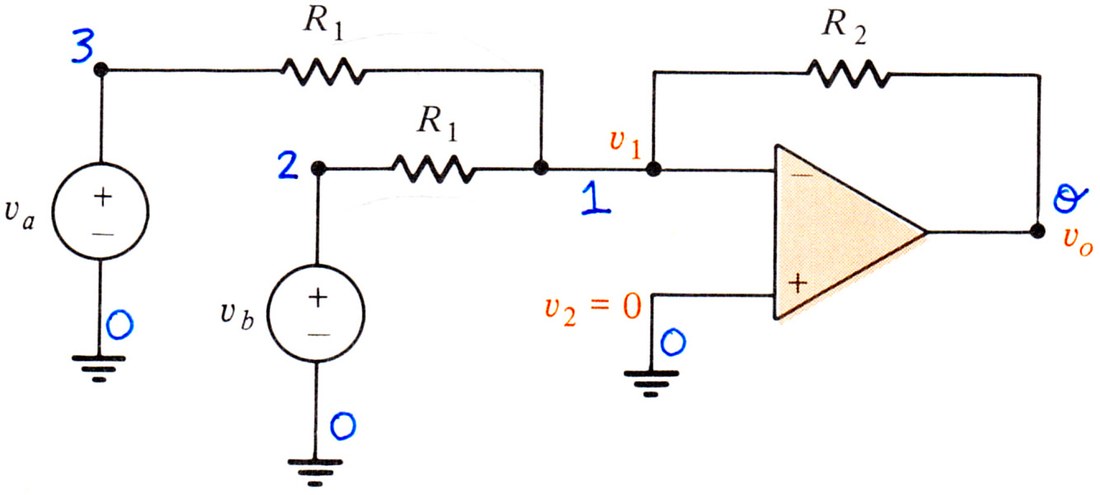

Bo2's Example 3.2 (Adder or Summing)

Find vo.

Circuit Description
ea,3,0,va
eb,2,0,vb
r31,3,1,r1
r21,2,1,r1
r1o,1,o,r2
o,0,1,o

The answer you want is vo, in Results.

-(r2/r1)(va+vb)

which is correct, as can be seen by comparing it to the book's answer.

AS2's Figure 5.21 (Adder or Summing)

Find vo.

Circuit Description
e1,b,0,v1
e2,c,0,v2
e3,d,0,v3
r1,b,a,r1
r2,c,a,r2
r3,d,a,r3
rf,a,o,rf
o,0,a,o

Ask Evaluate for expand(vo), exactly as on the calculator.

-rf v1/r1 - rf v2/r2 - rf v3/r3

which is correct, as can be seen by comparing it to the book's answer.

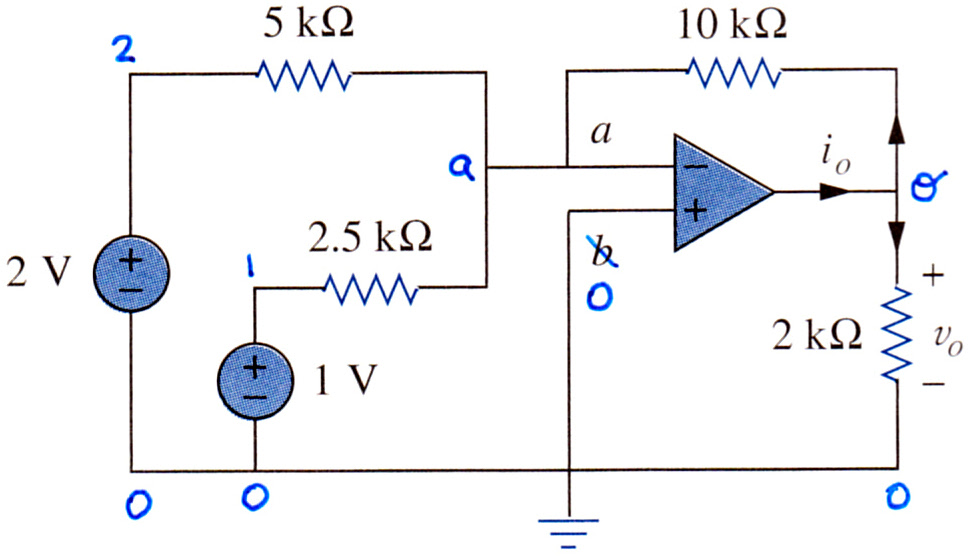

AS2's Example 5.6 (Adder or Summing)

Find vo and io.

Circuit Description
e1,1,0,1
e2,2,0,2
r1,2,a,5'k
r2,1,a,2.5'k
r3,a,o,10'k
r4,o,0,2'k
o,0,a,o

The answers you want are vo and io, in Results.

The answer, {-8.,-.0048}, is correct. Notice a current of 4.8mA is going into the op amp.

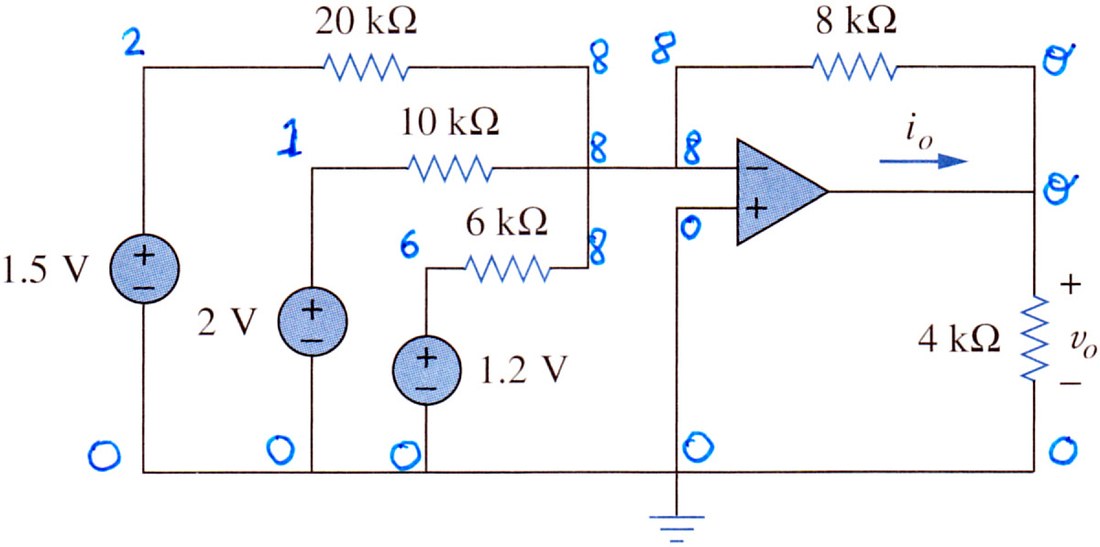

AS2's Practice Problem 5.6 (Adder or Summing)

Find vo and io.

Circuit Description
e2,2,0,1.5
e1,1,0,2
e6,6,0,1.2
r2,2,8,20'k
r1,1,8,10'k
r6,6,8,6'k
r8,8,o,8'k
r4,o,0,4'k
o,0,8,o

The answers you want are vo and io, in Results.

The answer, {-3.8,-.001425}, is correct. Again, the current is going into the op amp.

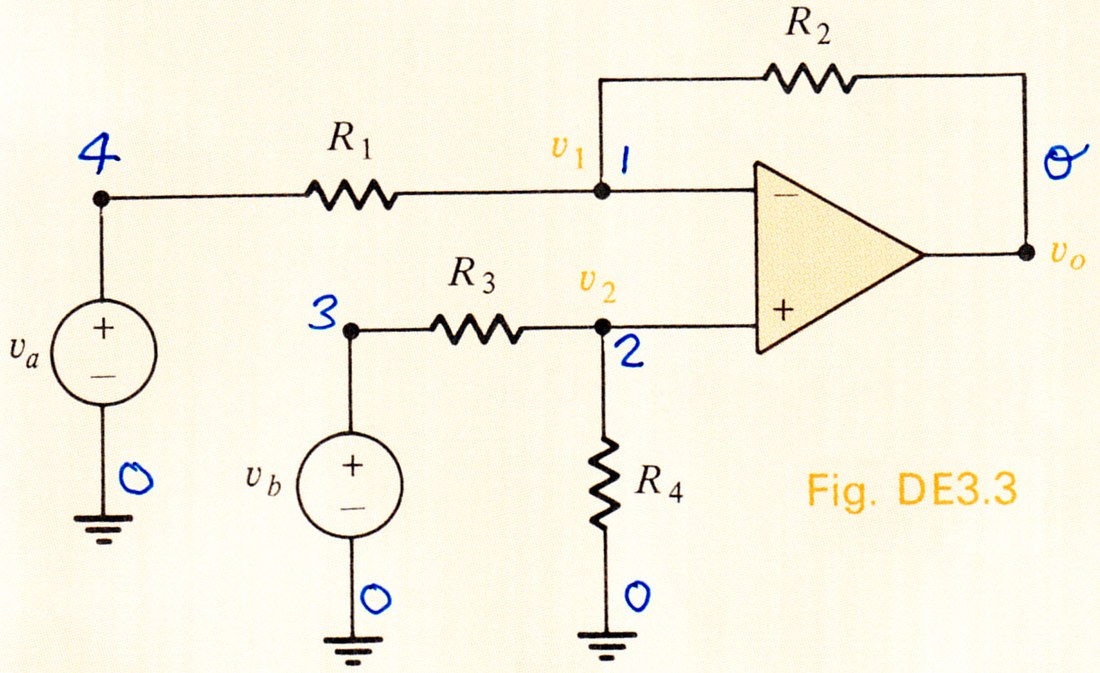

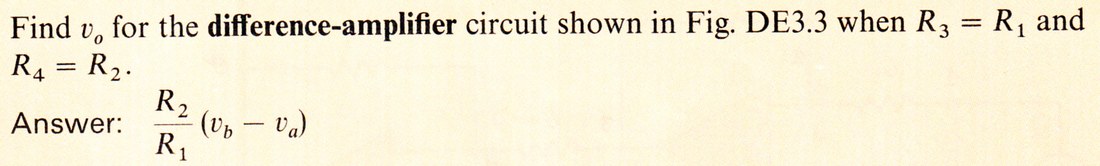

Bo2's Drill Exercise 3.3 (Difference or Differential)

Circuit Description
ea,4,0,va
eb,3,0,vb
r1,4,1,r1
r2,1,o,r2
r3,3,2,r1
r4,2,0,r2
o,2,1,o

vo is the correct answer, equivalent to the book's answer above.

((vb-va) r2)/r1

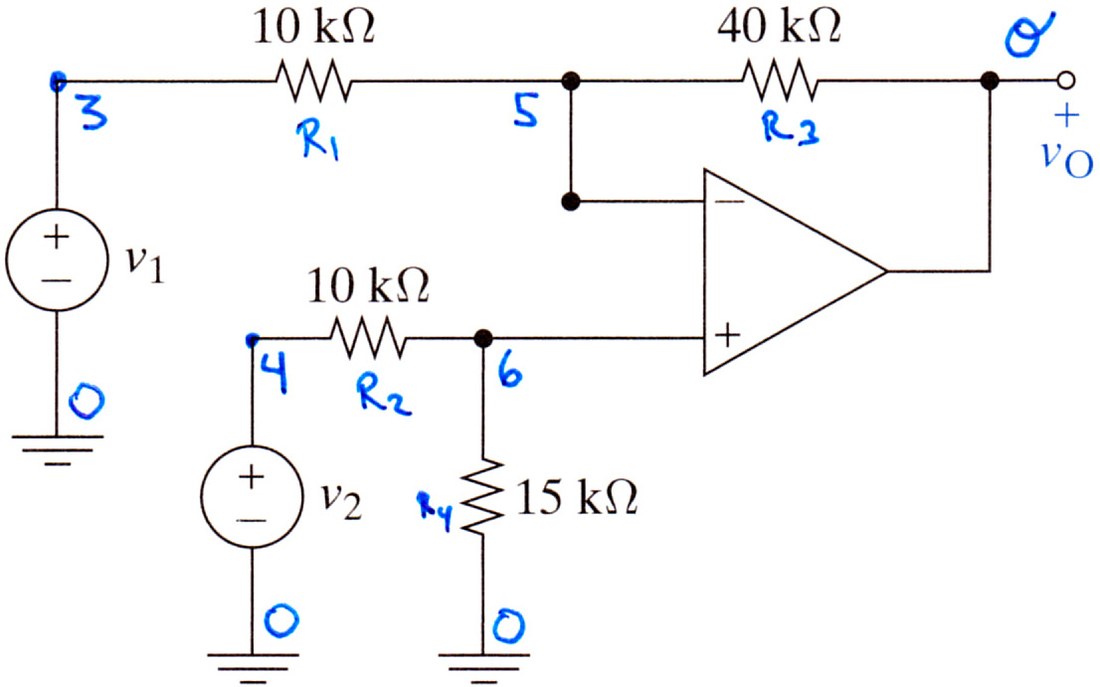

TR5's Exercise 4-13 (Difference or Differential)

Find vo.

Circuit Description
e1,3,0,v1
e2,4,0,v2
r1,3,5,10'k
r2,4,6,10'k
r3,5,o,40'k
r4,6,0,15'k
o,6,5,o

vo is 3 v2 − 4 v1, which is the correct answer.

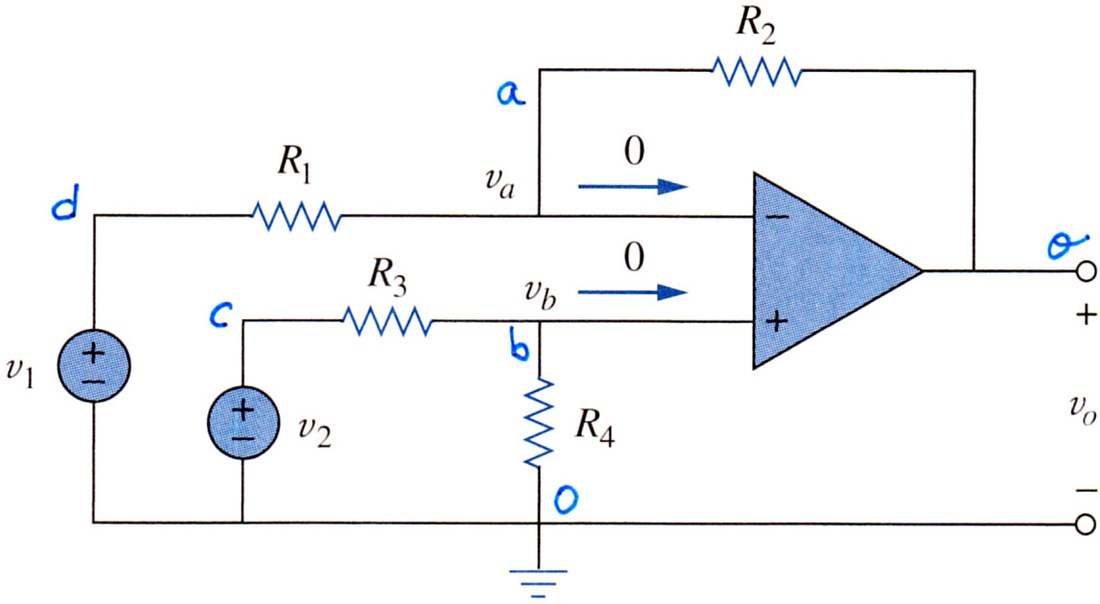

AS2's Figure 5.24 (Difference or Differential)

Find vo. (And keep it in the memory, for you will use it in the next three problems.)

Circuit Description
e1,d,0,v1
e2,c,0,v2
r1,d,a,r1
r3,c,b,r3
r2,a,o,r2
r4,b,0,r4
o,b,a,o

The answer you want is vo, in Results.

\[\dfrac{r1\,r4\,v2 - r2\,\bigl(r3\,v1 + r4\,(v1 - v2)\bigr)}{r1\,(r3 + r4)}\]

This expression is equivalent to the book's answer.

AS2's Figure 5.24 (Subtractor)

For the same circuit of the previous problem, find vo when R1=R2 and R3=R4.

Since we already have the expression for vo stored in the memory, we only do this:

The calculator's | is Evaluate's Conditions box. Ask Evaluate for expand(vo) and give it both equalities:

Conditions
r2 = r1
r3 = r4

The answer we get, v2-v1, is correct.

AS2's Example 5.7 (Difference or Differential)

Design an op amp circuit with inputs v1 and v2 such that vo = -5v1 + 3v2.

My solution follows. The problem statement is a fancy way of saying: for the circuit of the previous problem, find the resistor values that give an output vo = -5v1 + 3v2. Not strictly a Symbulator problem, but it shows how Symbulator fits into design problems.

First we take that part of vo that is a factor of v1, and make it equal to -5. Thus:

Conditions again, this time on the inputs rather than the resistors: v1 = 1 and v2 = 0. Then vo is

\[-\frac{r_{2}}{r_{1}}\]

which is equivalent to the book's expression, and it is that which has to equal −5.

Version 9 will not always arrange an expression the way the book does. If you want it another way, the Evaluate card takes simplify(), collect(), expand(), factor() and apart().

We get -r2/r1=-5. Now make that part of vo that is a factor of v2 equal to 3. Thus:

With v1 = 0 and v2 = 1 instead, vo is

\[\frac{r_{4} \left(r_{1} + r_{2}\right)} {r_{1} \left(r_{3} + r_{4}\right)}\]

which is equivalent to the book's expression, and it is that which has to equal 3.

We get r2*r4/(r1*(r3+r4))+r4/(r3+r4)=3 Now, since you have two equations, you can solve for two unknowns. Of the four resistors you get to choose, two can be whatever you want. The book recommends R1 = 10 kΩ and R3 = 20 kΩ. Now let's find R2 and R4.

There is no ans(1), so write the two equations out. This is what the Solve card is for — it solves a system that is not a circuit:

Equation(s) to solve in terms of the results
-r2/r1 = -5
r4*(r1 + r2)/(r1*(r3 + r4)) = 3

with r2, r4 as the unknowns. The answer is r2 = \(5 r_{1}\) and r4 = \(r_{3}\): a design rule rather than a pair of numbers. Put the book's r1 = 10 kΩ and r3 = 20 kΩ into it and you get 50 kΩ and 20 kΩ.

We get r2=50000 and r4=20000. This is correct.

Now, if this problem was part of a test, I'd like to verify that the answer is correct. To confirm this, simulate the circuit using the four values given above for the resistors.

Circuit Description
e1,d,0,v1
e2,c,0,v2
r1,d,a,10'k
r3,c,b,20'k
r2,a,o,50'k
r4,b,0,20'k
o,b,a,o

vo is the desired output, 3*v2-5*v1. The resistor values are correct.

AS2's Practice Problem 5.7 (Difference or Differential)

Design a difference amplifier with gain 4.

My solution follows. Again the statement is a fancy way of saying: for the circuit of the previous problem, find the resistor values that give an output vo = 4 (v2-v1), that is, -4v1 + 4v2. Same as before.

Exactly as in the previous problem: solve the circuit twice with conditions on the inputs — v1 = 1, v2 = 0, then v1 = 0, v2 = 1 — and read vo each time. The two factors are the same as before, so the two design equations are the same shape with 4 in place of 5 and 3.

This time the book asks that you use R1 = 10 kΩ and R3 = 10 kΩ. So we do that.

In the Solve card:

Equation(s) to solve in terms of the results
-r2/r1 = -4
r4*(r1 + r2)/(r1*(r3 + r4)) = 4

with r2, r4 as the unknowns. It answers r2 = \(4 r_{1}\) and r4 = \(4 r_{3}\) — at 10 kΩ each, 40000 Ω and 40000 Ω.

We get r2=40000 and r4=40000, the correct values for the remaining resistors.

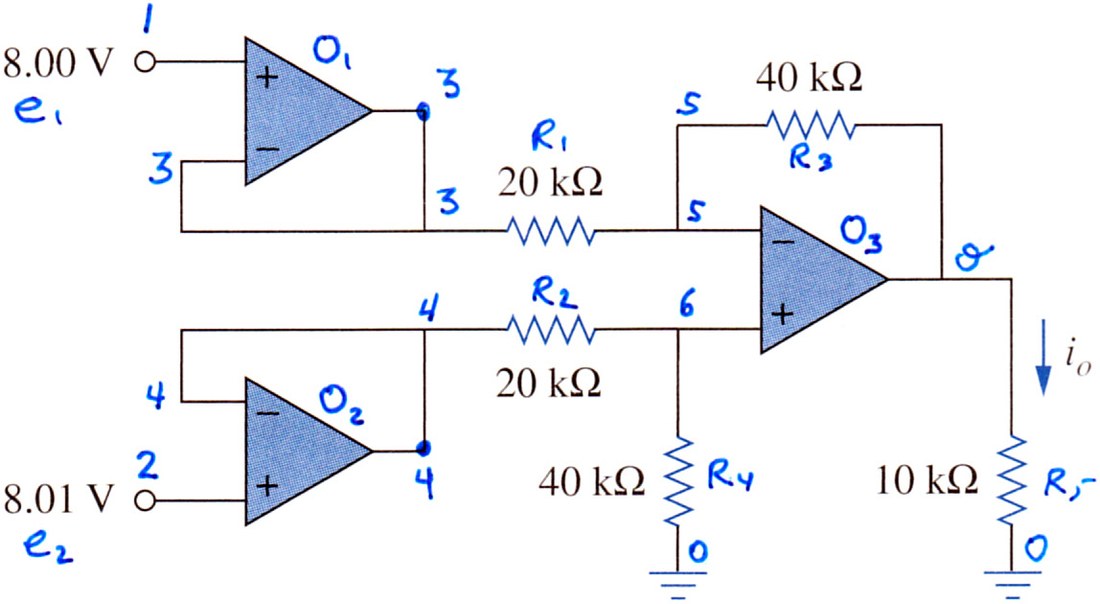

AS2's Practice Problem 5.8 (Instrumentation)

Find io.

Circuit Description
e1,1,0,8.
e2,2,0,8.01
o1,1,3,3
o2,2,4,4
r1,3,5,20'k
r2,4,6,20'k
r3,5,o,40'k
r4,6,0,40'k
o3,6,5,o
r5,o,0,10'k

The answer you want is ir5, in Results.

In the schematic, the current io corresponds to ir5. The answer, 2e-6, is correct.

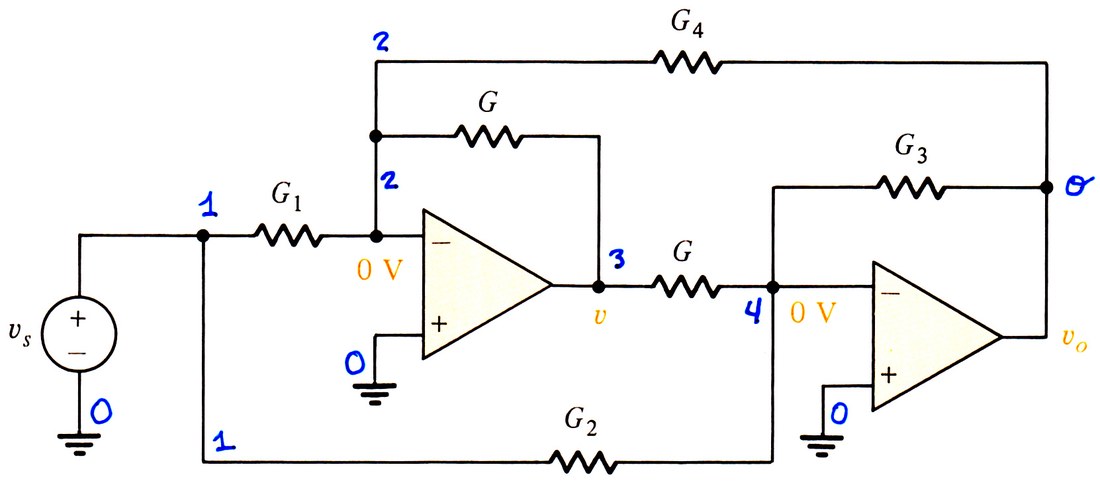

Bo2's Example 3.3 (Cascade)

Find vo in terms of the conductances and the applied voltage vS.

Circuit Description
e,1,0,vs
r12,1,2,1/g1
r14,1,4,1/g2
r4o,4,o,1/g3
r2o,2,o,1/g4
r23,2,3,1/g
r34,3,4,1/g
o1,0,2,3
o2,0,4,o

vo is:

((g1-g2) vs)/(g3-g4)

which is correct, as can be seen by comparing it to the book's answer.

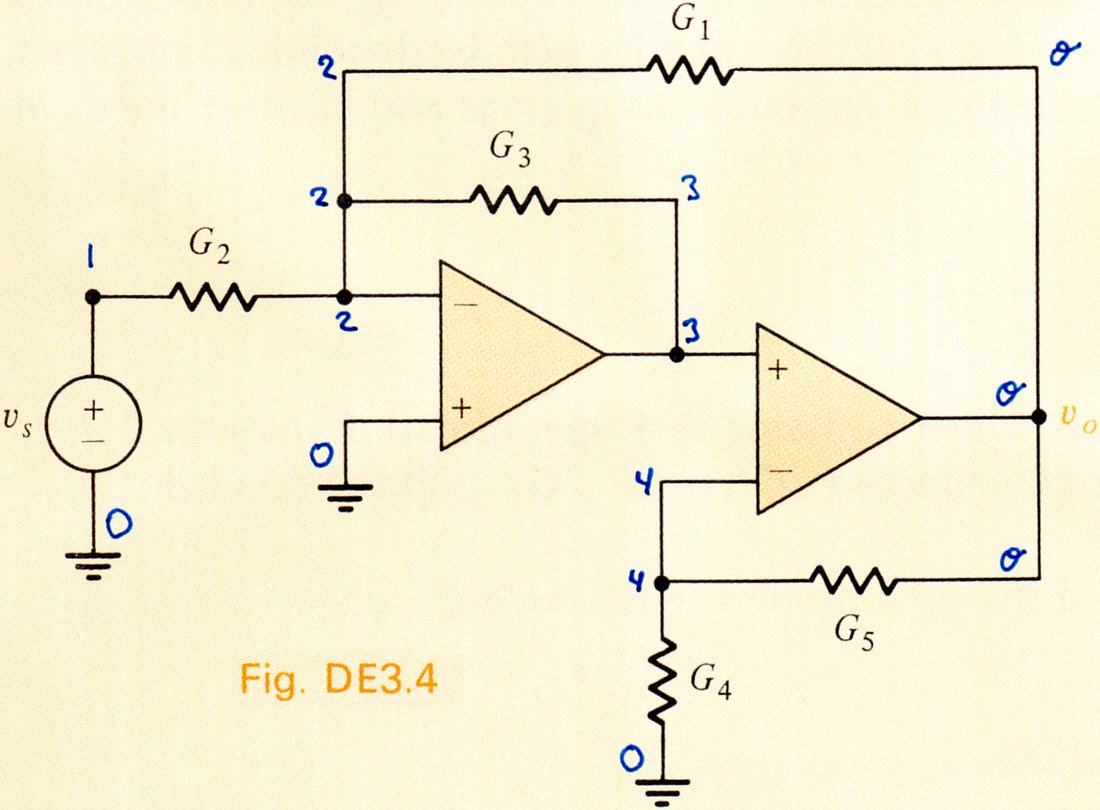

Bo2's Drill Exercise 3.4 (Cascade)

Circuit Description
e,1,0,vs
r1,2,o,1/1
r2,1,2,1/2
r3,2,3,1/3
r4,4,0,1/4
r5,4,o,1/5
o1,0,2,3
o2,3,4,o

vo is: -.75 vs, which is correct.

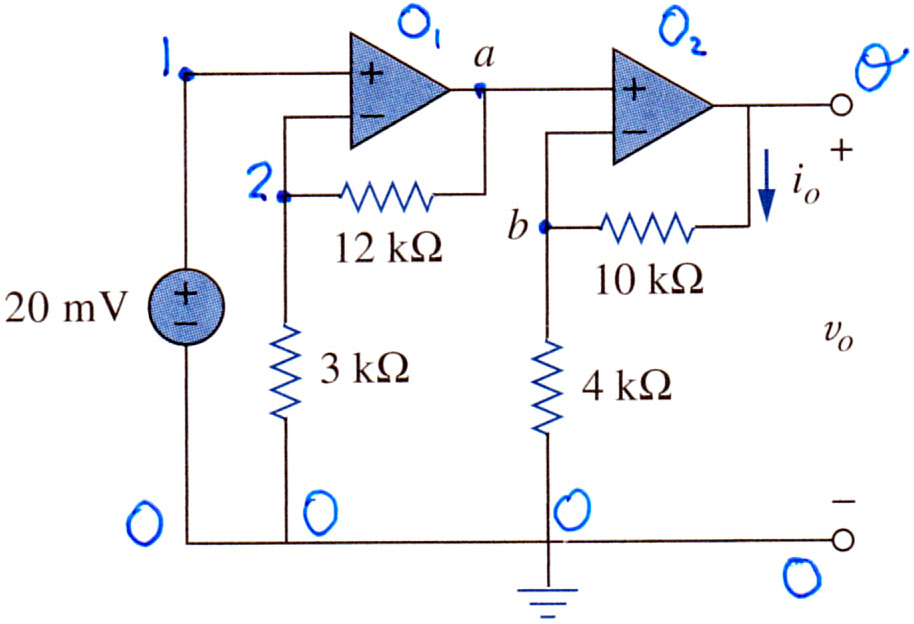

AS2's Example 5.9 (Cascade)

Find vo and io.

Circuit Description
e,1,0,20'm
o1,1,2,a
o2,a,b,o
ro,o,b,10'k
r4,b,0,4'k
r2,a,2,12'k
r3,2,0,3'k

vo is .35 and iro is 2.5e-5. This is correct.

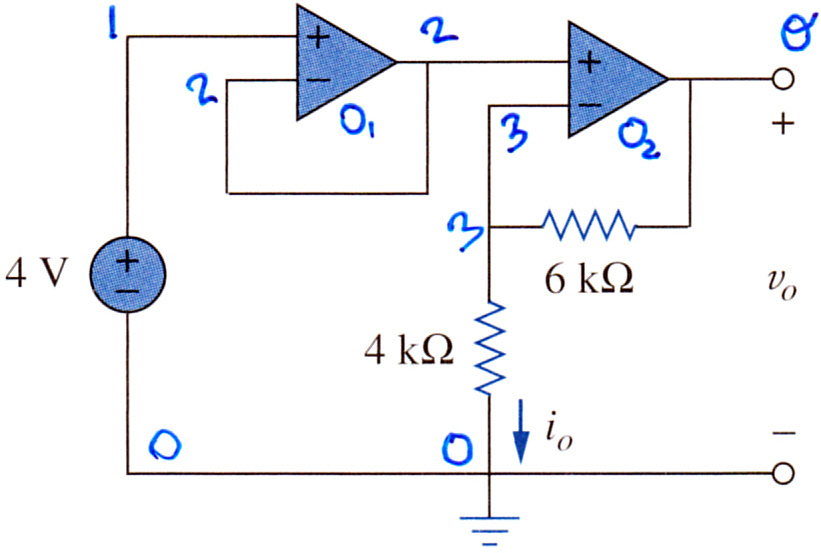

AS2's Practice Problem 5.9 (Cascade)

Determine vo and io.

Circuit Description
e,1,0,4
o1,1,2,2
o2,2,3,o
ro,3,0,4'k
r6,3,o,6'k

The answers you want are vo and iro, in Results.

The answer, {10,1/1000}, is correct. To say a 1/1000 A current is the same as 1mA.

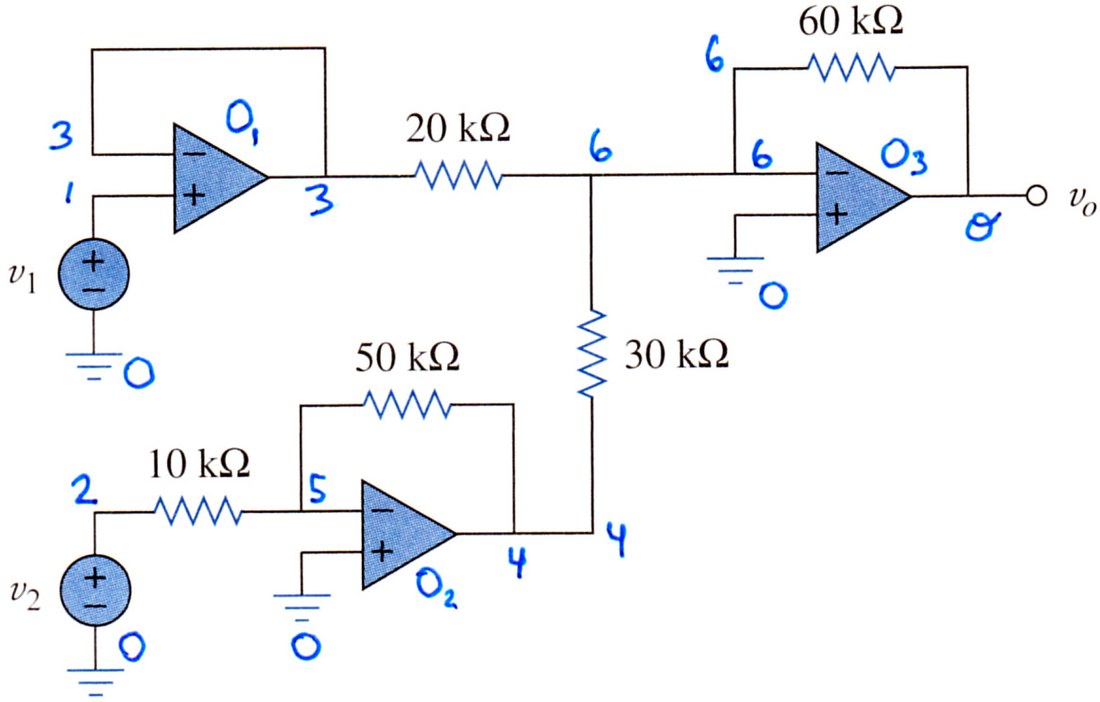

AS2's Practice Problem 5.10 (Cascade)

If v1 = 2V and v2 = 1.5V, find vo in the circuit.

Circuit Description
e1,1,0,2
e2,2,0,1.5
o1,1,3,3
r1,2,5,10'k
r2,3,6,20'k
r5,5,4,50'k
o2,0,5,4
r3,6,4,30'k
r6,6,o,60'k
o3,0,6,o

The answer you want is vo, in Results.

The answer, 9, is correct.

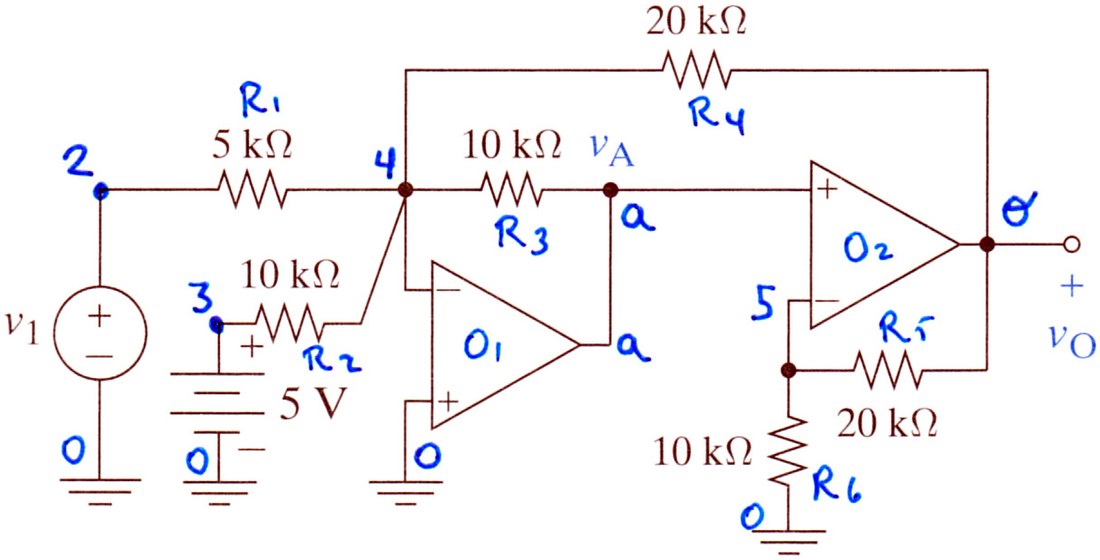

TR5's Example 4-16 (Cascade)

Derive an expression for vo in terms of the two inputs.

Circuit Description
e1,2,0,v1
e5,3,0,5
r1,2,4,5'k
r2,3,4,10'k
o1,0,4,a
r3,4,a,10'k
r4,4,o,20'k
o2,a,5,o
r5,5,o,20'k
r6,5,0,10'k

Ask Evaluate for expand(vo) with Rounding set to approx (full precision) in Settings — that is what the calculator's expand(approx(vo)) is doing. It is arranged differently from the book's, which is a matter of presentation rather than of arithmetic.

The answer, -2.4 v1 − 6, is correct.

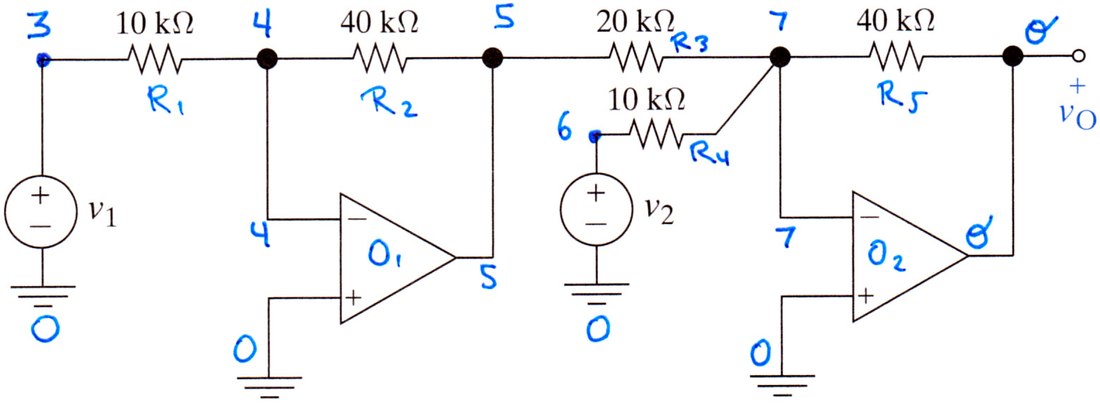

TR5's Exercise 4-14 (Cascade)

Derive an expression for vo in terms of the inputs v1 and v2.

Circuit Description
e1,3,0,v1
r1,3,4,10'k
o1,0,4,5
r2,4,5,40'k
r3,5,7,20'k
e2,6,0,v2
r4,6,7,10'k
r5,7,o,40'k
o2,0,7,o

Ask Evaluate for expand(vo), as on the calculator.

The answer, 8 v1 – 4 v2, is correct.

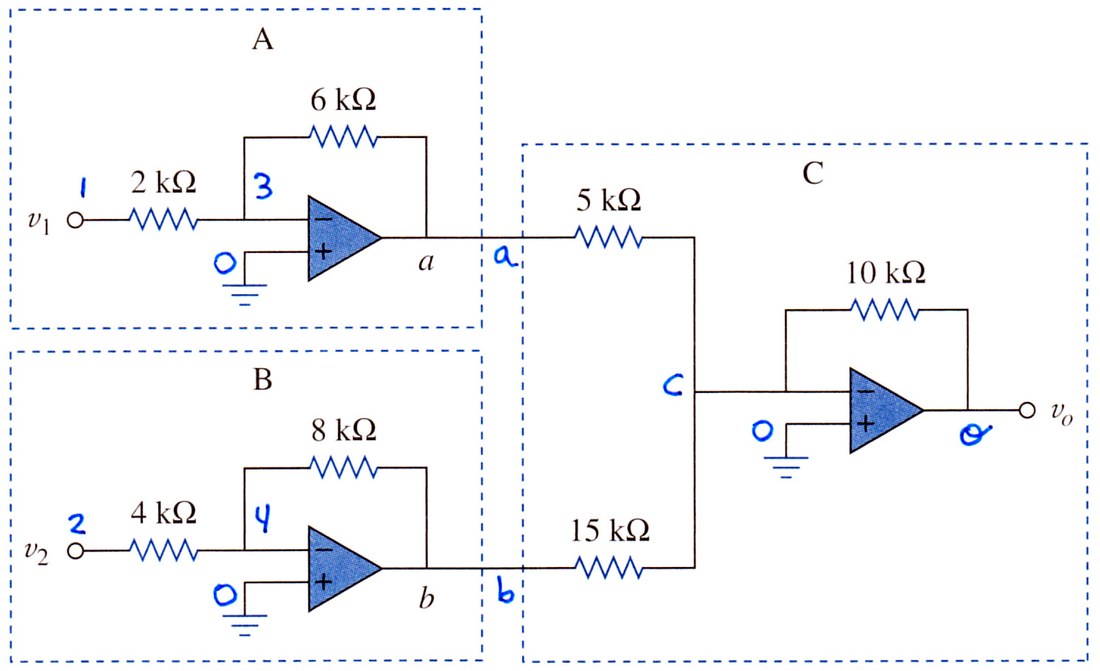

AS2's Example 5.10 (Cascade)

If v1 = 1V and v2 = 2V, find vo in the circuit.

Circuit Description
e1,1,0,1
e2,2,0,2
r2,1,3,2'k
r4,2,4,4'k
r6,3,a,6'k
r8,4,b,8'k
r5,a,c,5'k
r15,b,c,15'k
r10,c,o,10'k
oa,0,3,a
ob,0,4,b
oc,0,c,o

The answer, 8.667, is correct.

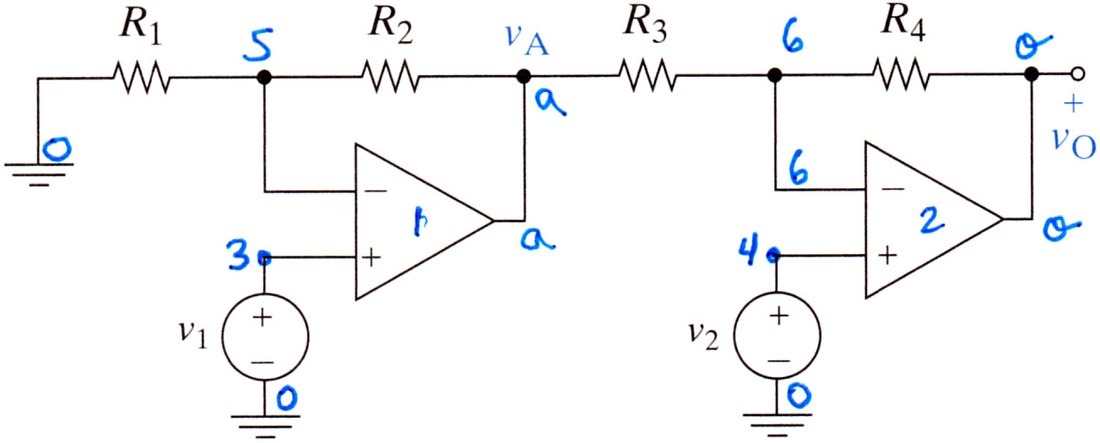

TR5's Example 4-17 (Cascade)

Derive an expression for vo in terms of the inputs v1 and v2.

Circuit Description
r1,5,0,r1
r2,5,a,r2
r3,a,6,r3
r4,6,o,r4
e1,3,0,v1
e2,4,0,v2
o1,3,5,a
o2,4,6,o

The answer you want is vo, in Results.

We get the right answer. Let's compare it with the book's answer.

Our answer, expanded via expand(vo), is shown below:

\[-\dfrac{r2\,r4\,v1}{r1\,r3} - \dfrac{r4\,v1}{r3} + \dfrac{r4\,v2}{r3} + v2\]

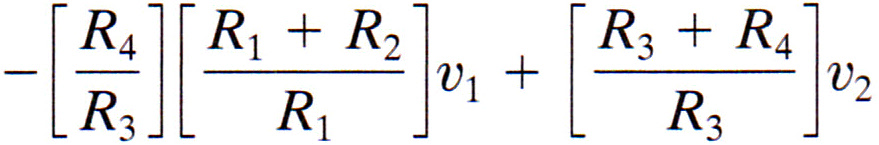

Playing with it by hand we get a form that, in my opinion, is prettier ;-) than the book's:

\[v2\left(\dfrac{r4}{r3} + 1\right) - v1\left(\dfrac{r4}{r3}\right)\left(\dfrac{r2}{r1} + 1\right)\]

TR5's Example 4-18 (Multiple)

Derive an expression for vo in terms of the inputs v1 and v2.

Circuit Description
e2,a,0,v2
e1,f,0,v1
o2,a,c,b
o1,f,d,e
r1,b,c,r1
r2,c,d,r2
r3,d,e,r3

To find vo, we ask for vb-ve. We get an expression that can easily be rearranged to look like this:

\[-\left(\dfrac{r1 + r2 + r3}{r2}\right)(v1 - v2)\]

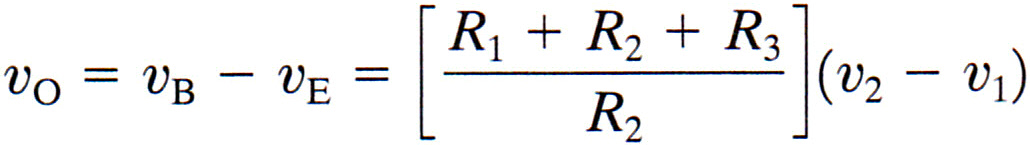

This is exactly the answer from the book:

If you are ever in doubt whether two expressions are the same, subtract one from the other in Evaluate. If the answer is 0, they are the same — an equality sign would only be read as a comparison to solve, not as a question about sameness.
